init.h File Reference

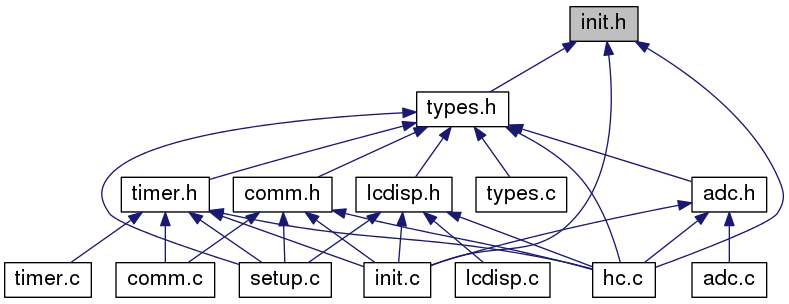

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	FIRST_ADC_INPUT   8
#define	LAST_ADC_INPUT   9
#define	ADC_TMP_INNER_ID   0
#define	ADC_TMP_OUTER_ID   1
#define	ADC_SUP_DIV_FCT   3.2414
#define	REV_CURRENT_VALUE   34
#define	RR_IN   33000
#define	RR_OUT   51500
#define	ADC_REF_VOLTAGE   4950

Functions
void	Init (void)

Macro Definition Documentation

#define ADC_REF_VOLTAGE   4950

ARV: calibrated adc reference voltage

Definition at line 42 of file init.h.

Referenced by CalcAdcTemp(), and CalcSupplyVoltage().

#define ADC_SUP_DIV_FCT   3.2414

temperature sender supply voltage divider factor

Definition at line 23 of file init.h.

Referenced by CalcSupplyVoltage().

#define ADC_TMP_INNER_ID   0

id of channel for inner temp

Definition at line 15 of file init.h.

Referenced by CalcAdcTemp(), main(), and ProcessNextConversion().

#define ADC_TMP_OUTER_ID   1

id of channel for outer temp / temperature sender supply voltage monitoring

Definition at line 19 of file init.h.

Referenced by main(), and ProcessNextConversion().

#define FIRST_ADC_INPUT   8

first adc input

Definition at line 7 of file init.h.

Referenced by AdcInit(), and SetMux().

#define LAST_ADC_INPUT   9

last adc input

Definition at line 11 of file init.h.

#define REV_CURRENT_VALUE   34

RCV: reverse constant thermistor current value [1/mA]

Definition at line 27 of file init.h.

Referenced by CalcAdcTemp().

#define RR_IN   33000

RRF: reference resistance @25°C of inner temp sensor

Definition at line 34 of file init.h.

Referenced by CalcAdcTemp().

#define RR_OUT   51500

RRO: reference resistance @25°C of outer temp sensor

Definition at line 38 of file init.h.

Referenced by CalcAdcTemp().

Function Documentation

void Init

(

void

)

main initialization routine

application dependent controller initialization

Definition at line 11 of file init.c.

References AC_SR, AdcInit(), CommInit(), MEASSET::forTemp, g_sets, MEASSET::inTemp, INVALID_VAL_I16, INVALID_VAL_U16, LcdInit(), NUM_MS, MEASSET::outTemp, SetupInit(), TimerInit(), and UCHAR.

Referenced by main().

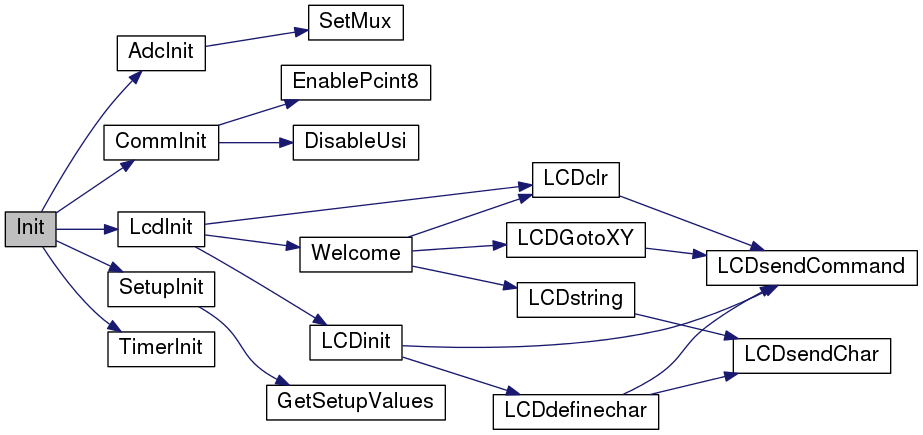

Here is the call graph for this function:

Here is the caller graph for this function:
