lcd_lib.c File Reference

#include "lcd_lib.h"
#include <inttypes.h>
#include <avr/io.h>
#include <avr/pgmspace.h>
#include <util/delay.h>
#include <stdlib.h>
#include <string.h>

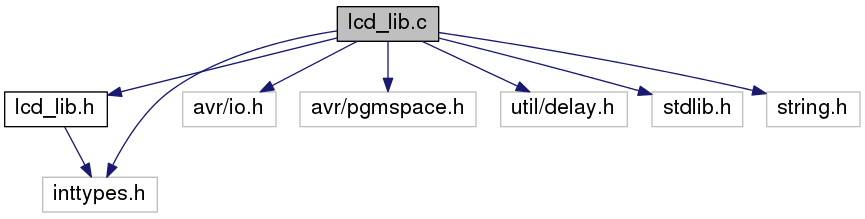

Include dependency graph for lcd_lib.c:

Go to the source code of this file.

Functions
void	LCDinit (void)
void	LCDsendChar (uint8_t ch)
void	LCDsendCommand (uint8_t cmd)
void	LCDclr (void)
void	LCDhome (void)
void	LCDstring (uint8_t *data)
void	LCDGotoXY (uint8_t x, uint8_t y)
void	CopyStringtoLCD (const uint8_t *FlashLoc, uint8_t x, uint8_t y)
void	LCDdefinechar (const uint8_t *pc, uint8_t char_code)
void	LCDshiftLeft (uint8_t n)
void	LCDshiftRight (uint8_t n)
void	LCDcursorOn (void)
void	LCDcursorOnBlink (void)
void	LCDcursorOFF (void)
void	LCDblank (void)
void	LCDvisible (void)
void	LCDcursorLeft (uint8_t n)
void	LCDcursorRight (uint8_t n)
void	LCDprogressBar (uint8_t progress, uint8_t maxprogress, uint8_t length)

Function Documentation

void CopyStringtoLCD	(	const uint8_t *	FlashLoc,
		uint8_t	x,
		uint8_t	y
	)

Definition at line 401 of file lcd_lib.c.

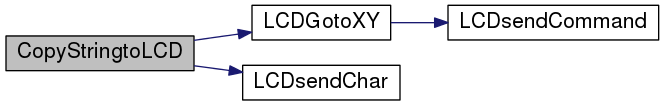

References LCDGotoXY(), and LCDsendChar().

Here is the call graph for this function:

void LCDblank

(

void

)

Definition at line 462 of file lcd_lib.c.

References LCDsendCommand().

Here is the call graph for this function:

void LCDclr

(

void

)

Definition at line 361 of file lcd_lib.c.

References LCD_CLR, and LCDsendCommand().

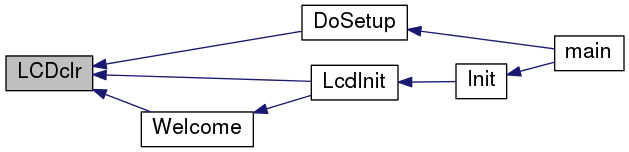

Referenced by DoSetup(), LcdInit(), and Welcome().

Here is the call graph for this function:

Here is the caller graph for this function:

void LCDcursorLeft

(

uint8_t

n

)

Definition at line 470 of file lcd_lib.c.

References LCDsendCommand().

Here is the call graph for this function:

void LCDcursorOFF

(

void

)

Definition at line 458 of file lcd_lib.c.

References LCDsendCommand().

Here is the call graph for this function:

void LCDcursorOn

(

void

)

Definition at line 450 of file lcd_lib.c.

References LCDsendCommand().

Here is the call graph for this function:

void LCDcursorOnBlink

(

void

)

Definition at line 454 of file lcd_lib.c.

References LCDsendCommand().

Here is the call graph for this function:

void LCDcursorRight

(

uint8_t

n

)

Definition at line 477 of file lcd_lib.c.

References LCDsendCommand().

Here is the call graph for this function:

void LCDdefinechar	(	const uint8_t *	pc,
		uint8_t	char_code
	)

Definition at line 425 of file lcd_lib.c.

References LCDsendChar(), and LCDsendCommand().

Referenced by LCDinit().

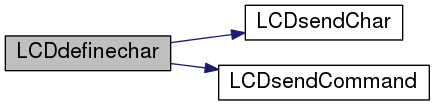

Here is the call graph for this function:

Here is the caller graph for this function:

void LCDGotoXY	(	uint8_t	x,
		uint8_t	y
	)

Definition at line 382 of file lcd_lib.c.

References LCD_DDRAM, LCD_LINE0_DDRAMADDR, LCD_LINE1_DDRAMADDR, LCD_LINE2_DDRAMADDR, LCD_LINE3_DDRAMADDR, and LCDsendCommand().

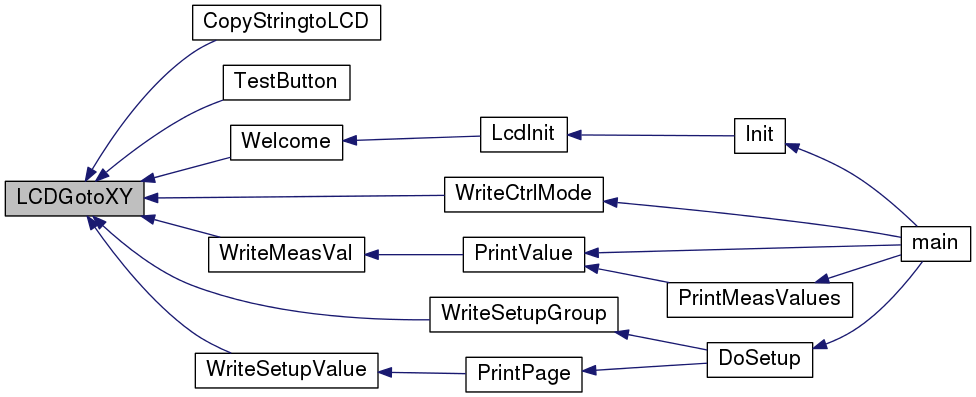

Referenced by CopyStringtoLCD(), TestButton(), Welcome(), WriteCtrlMode(), WriteMeasVal(), WriteSetupGroup(), and WriteSetupValue().

Here is the call graph for this function:

Here is the caller graph for this function:

void LCDhome

(

void

)

Definition at line 365 of file lcd_lib.c.

References LCD_HOME, and LCDsendCommand().

Here is the call graph for this function:

void LCDinit

(

void

)

Definition at line 80 of file lcd_lib.c.

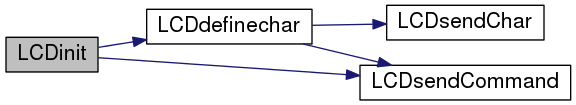

References LCD_D0, LCD_D1, LCD_D2, LCD_D3, LCD_D4, LCD_D5, LCD_D6, LCD_D7, LCD_E, LCD_RS, LCD_RW, LCDdefinechar(), LCDR, LCDsendCommand(), LCP, LDDR, and LDP.

Referenced by LcdInit().

Here is the call graph for this function:

Here is the caller graph for this function:

void LCDprogressBar	(	uint8_t	progress,
		uint8_t	maxprogress,
		uint8_t	length
	)

Definition at line 485 of file lcd_lib.c.

References LCDsendChar(), and PROGRESSPIXELS_PER_CHAR.

Here is the call graph for this function:

void LCDsendChar

(

uint8_t

ch

)

Definition at line 262 of file lcd_lib.c.

References LCD_E, LCD_RS, LCP, and LDP.

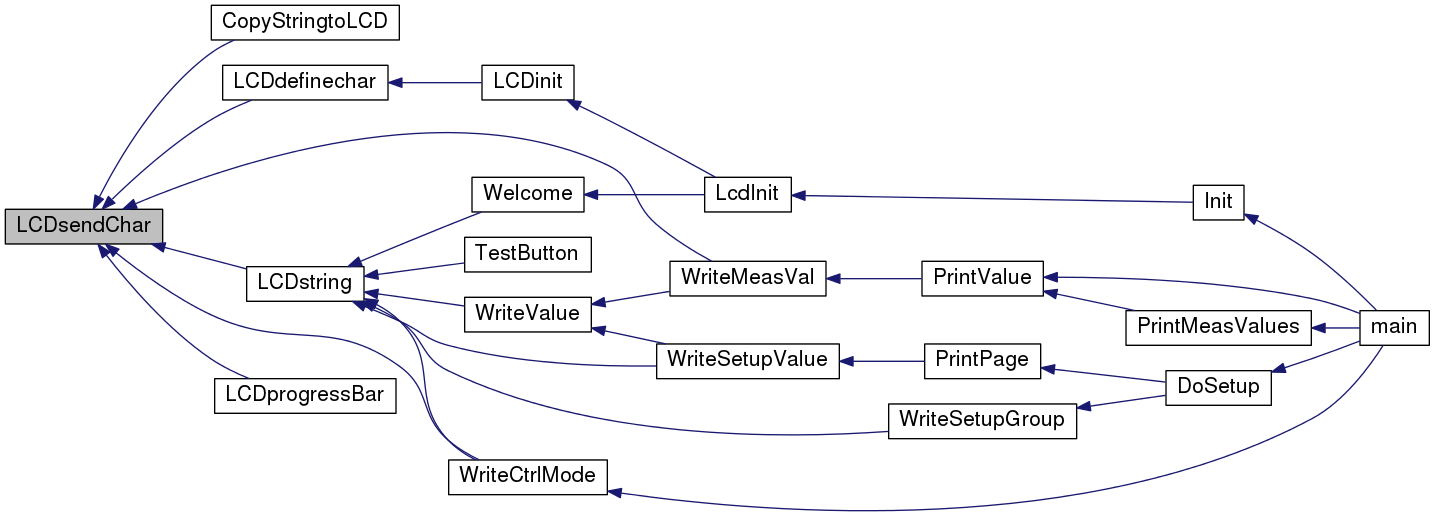

Referenced by CopyStringtoLCD(), LCDdefinechar(), LCDprogressBar(), LCDstring(), WriteCtrlMode(), and WriteMeasVal().

Here is the caller graph for this function:

void LCDsendCommand

(

uint8_t

cmd

)

Definition at line 318 of file lcd_lib.c.

References LCD_E, LCP, and LDP.

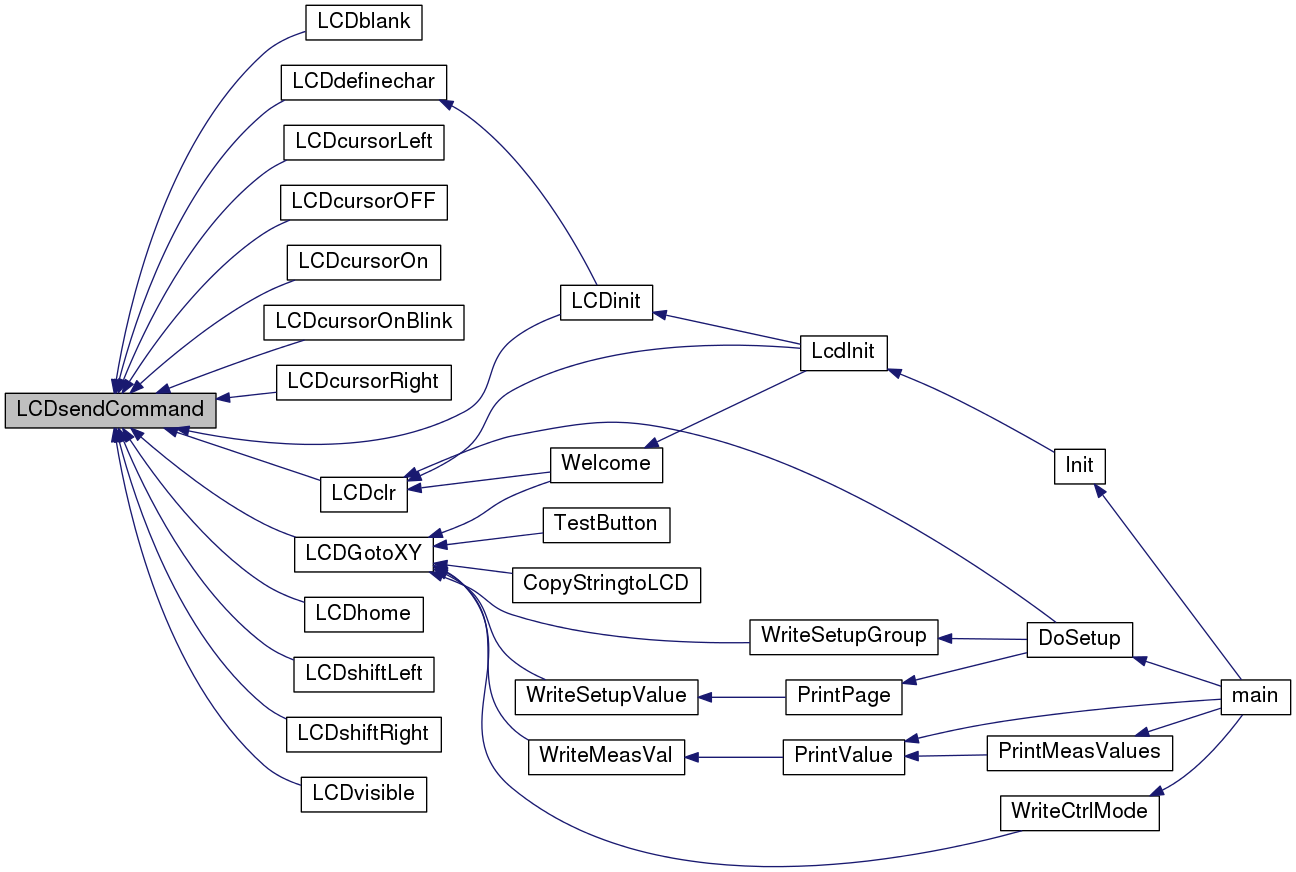

Referenced by LCDblank(), LCDclr(), LCDcursorLeft(), LCDcursorOFF(), LCDcursorOn(), LCDcursorOnBlink(), LCDcursorRight(), LCDdefinechar(), LCDGotoXY(), LCDhome(), LCDinit(), LCDshiftLeft(), LCDshiftRight(), and LCDvisible().

Here is the caller graph for this function:

void LCDshiftLeft

(

uint8_t

n

)

Definition at line 436 of file lcd_lib.c.

References LCDsendCommand().

Here is the call graph for this function:

void LCDshiftRight

(

uint8_t

n

)

Definition at line 443 of file lcd_lib.c.

References LCDsendCommand().

Here is the call graph for this function:

void LCDstring

(

uint8_t *

data

)

Definition at line 369 of file lcd_lib.c.

References LCDsendChar().

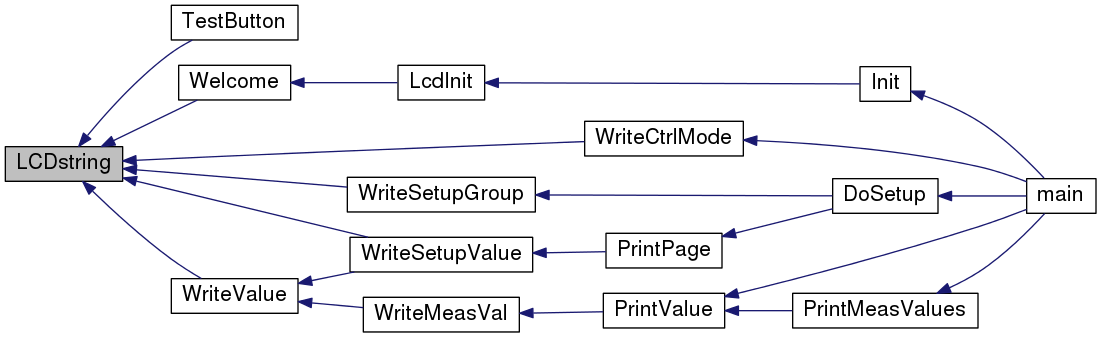

Referenced by TestButton(), Welcome(), WriteCtrlMode(), WriteSetupGroup(), WriteSetupValue(), and WriteValue().

Here is the call graph for this function:

Here is the caller graph for this function:

void LCDvisible

(

void

)

Definition at line 466 of file lcd_lib.c.

References LCDsendCommand().

Here is the call graph for this function:
