#include <stdlib.h>
#include <stdio.h>
#include <util/delay.h>
#include "lcdisp.h"
#include "lcd_lib.h"
#include "setup.h"

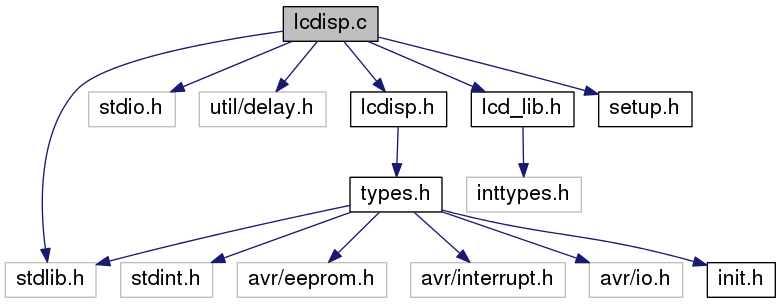

Include dependency graph for lcdisp.c:

Functions
void	LcdInit (void)
	display initialization Alphanumeric LCD initialization Connections are specified in the Project\|Configure\|C Compiler\|Libraries\|Alphanumeric LCD menu: RS - PORTA Bit 0 RD - PORTA Bit 1 EN - PORTA Bit 2 D4 - PORTA Bit 4 D5 - PORTA Bit 5 D6 - PORTA Bit 6 D7 - PORTA Bit 7 Characters/line: 16 More...

void	WriteMeasVal (MEASVAL *mv)
	put a measurement value on lcd source value is being output as fixed decimal point number More...

void	WriteValue (MEASVAL *mv)
	write the payload value itself onto lcd while considering the data type More...

void	WriteSetupValue (SETUP_ITEM *si, UCHAR allow, UCHAR id)
	put a setup item on screen, which consist of a name and a value spread over two lines More...

void	WriteSetupGroup (UCHAR grp)

void	WriteCtrlMode (UCHAR name, UCHAR *cmName)

void	ntofa (UINT val, UCHAR *buf, DATTYPE dt)
	convert integer value to fixed decimal point string buffer must have at least a size of 8 bytes allocated More...

UINT	_exp10 (UCHAR n)

void	Welcome (void)
	put startup info on screen More...

Function Documentation

UINT _exp10 ( UCHAR n )

calculate the exponential to base 10

Parameters

n	number to calculate the exponential for

Returns: result of exponential to base 10

Definition at line 201 of file lcdisp.c.

References NUM_BASE, NUM_SDG, UCHAR, and UINT.

Referenced by ntofa().

Here is the caller graph for this function:

void LcdInit ( void )

display initialization Alphanumeric LCD initialization Connections are specified in the Project|Configure|C Compiler|Libraries|Alphanumeric LCD menu: RS - PORTA Bit 0 RD - PORTA Bit 1 EN - PORTA Bit 2 D4 - PORTA Bit 4 D5 - PORTA Bit 5 D6 - PORTA Bit 6 D7 - PORTA Bit 7 Characters/line: 16

Definition at line 23 of file lcdisp.c.

References LCDclr(), LCDinit(), and Welcome().

Referenced by Init().

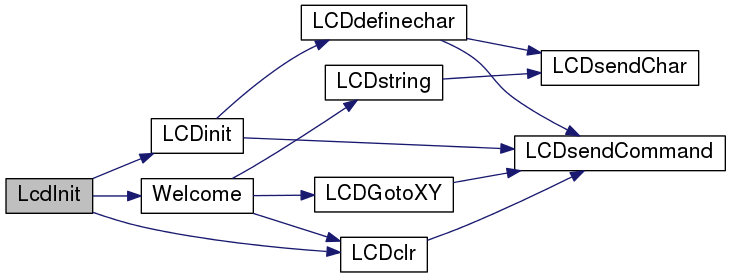

Here is the call graph for this function:

Here is the caller graph for this function:

void ntofa	(	UINT	val,
		UCHAR *	buf,
		DATTYPE	dt
	)

convert integer value to fixed decimal point string buffer must have at least a size of 8 bytes allocated

Parameters

val	value being converted
buf	buffer for the conversion result
dt	data type to convert to

Definition at line 133 of file lcdisp.c.

References _exp10(), ALNUM_BASE, BR_DBDP, DF_DECPT, DT_CHAR, DT_INT, DT_TIME, DT_UCHAR, NUM_LEN, UCHAR, UINT, and VALUE_LENGTH.

Referenced by WriteValue().

Here is the call graph for this function:

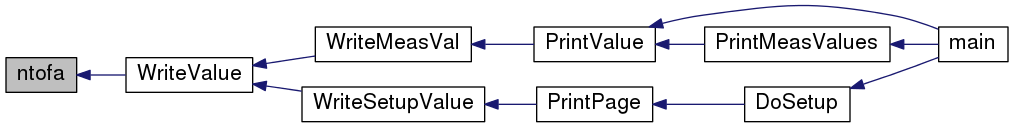

Here is the caller graph for this function:

void Welcome ( void )

put startup info on screen

project name
revision or version number
vendor's name

Definition at line 225 of file lcdisp.c.

References FW_REV, LCDclr(), LCDGotoXY(), LCDstring(), and UCHAR.

Referenced by LcdInit().

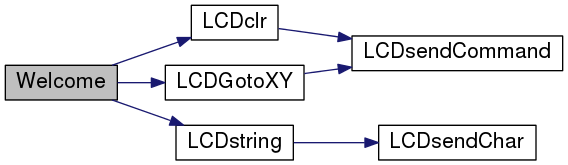

Here is the call graph for this function:

Here is the caller graph for this function:

void WriteCtrlMode	(	UCHAR	name,
		UCHAR *	cmName
	)

puts the control mode onto screen and gives it a name

Parameters

name	of the control mode (of meas value)
cmName	hrf control mode

Definition at line 117 of file lcdisp.c.

References LCDGotoXY(), LCDsendChar(), LCDstring(), and UCHAR.

Referenced by main().

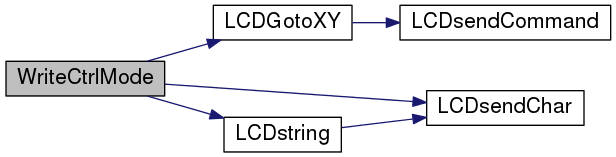

Here is the call graph for this function:

Here is the caller graph for this function:

void WriteMeasVal ( MEASVAL * mv )

put a measurement value on lcd source value is being output as fixed decimal point number

Parameters

mv	measurement value to extract values to put on screen from

Definition at line 34 of file lcdisp.c.

References LCD_POS::col, LCDGotoXY(), LCDsendChar(), MEASVAL::name, MEASVAL::pos, LCD_POS::row, and WriteValue().

Referenced by PrintValue().

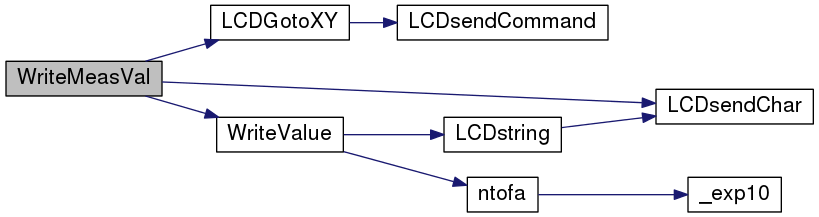

Here is the call graph for this function:

Here is the caller graph for this function:

void WriteSetupGroup ( UCHAR grp )

puts the hrf setup group onto screen

Parameters

grp	encoded group to resolve to hrf and print

Definition at line 95 of file lcdisp.c.

References LCDGotoXY(), LCDstring(), POS_GRP_START, SG_CTRL, SG_LIMIT, SG_MEAS, and UCHAR.

Referenced by DoSetup().

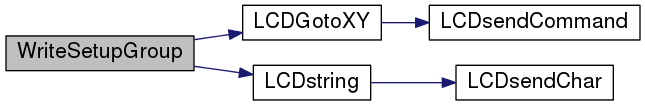

Here is the call graph for this function:

Here is the caller graph for this function:

void WriteSetupValue	(	SETUP_ITEM *	si,
		UCHAR	allow,
		UCHAR	id
	)

put a setup item on screen, which consist of a name and a value spread over two lines

Parameters

si	setup item to print
allow	flag to allow (TRUE) or disallow (FALSE) writing - this reflects the currently selected item to the user by flashing
id	of the position in data array, used for position determination on screen

Definition at line 72 of file lcdisp.c.

References MEASVAL::dt, LCDGotoXY(), LCDstring(), SETUP_ITEM::name, POS_1ST_NAME, POS_1ST_VAL, POS_2ND_NAME, POS_2ND_VAL, SETUP_ITEM::type, UCHAR, SETUP_ITEM::value, MEASVAL::value, and WriteValue().

Referenced by PrintPage().

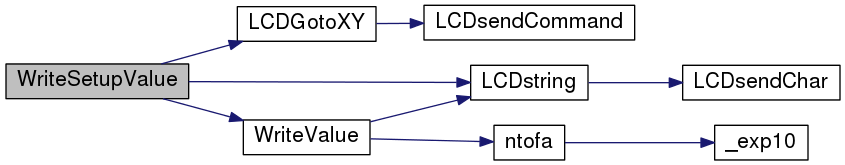

Here is the call graph for this function:

Here is the caller graph for this function:

void WriteValue ( MEASVAL * mv )

write the payload value itself onto lcd while considering the data type

Parameters

mv	encapsulated measurement value to put on screen

Definition at line 44 of file lcdisp.c.

References MEASVAL::dt, DT_CHAR, DT_FLOAT, DT_INT, DT_TIME, DT_UCHAR, DT_UINT, LCDstring(), ntofa(), UCHAR, MEASVAL::value, and VALUE_LENGTH.

Referenced by WriteMeasVal(), and WriteSetupValue().

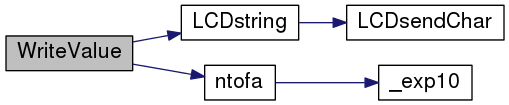

Here is the call graph for this function:

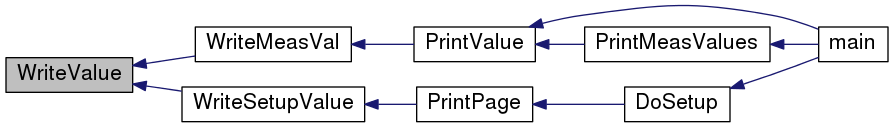

Here is the caller graph for this function:
