hc.c File Reference

#include <math.h>
#include "types.h"
#include "hc.h"
#include "init.h"
#include "adc.h"
#include "lcdisp.h"
#include "timer.h"
#include "comm.h"
#include "setup.h"

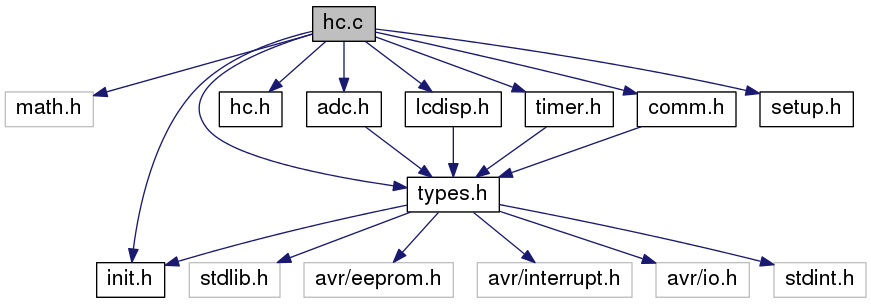

Include dependency graph for hc.c:

Go to the source code of this file.

Functions
int	main (void)
	main controlling task More...
MEASSET *	DoControl (INT inTemp, INT outTemp, UINT forTemp, UCHAR learning, UINT min, UCHAR sec)
	realizes the main heater controlling algorithm the value of inner temperature distinguishes between the controlling strategy: leading the inner temperature if not equal to INVALID_VAL_I16, leading the forerun otherwise More...
UINT	FindForeRun (INT *outTemp, const UCHAR range, UINT const delLim)
	gets the forerun temperature of the closest outer temperature which was recorded in learning phase a predefined hysteresis supports a proper hit More...
void	ControlEngine (ENG_MODE em)
	takes care of the heating curve recording in eeprom records only if outer temp value does not exist (specific hysteresis respected) More...
void	PrintMeasValues (MEASSET *ms, OP_MODE opm, UCHAR msrFull)
	puts the measurement values on screen More...
void	PrintValue (DATTYPE dt, UCHAR col, UCHAR row, UCHAR name, void *value)
	put a specific value on screen More...
void	DoEngineTest (BTN_CODE bc)
	do engine testing dependent on button request, simply drives the mixer engine unconditionally More...
UCHAR	CalcPrevIndex (UCHAR curIdx, UCHAR delIdx)

Variables
HCREC EEMEM	ge_hcRec [NUM_HR]
UCHAR EEMEM	ge_hcrCnt = 0
UCHAR EEMEM	e_dummy [3] = ".."
MEASSET EEMEM	ge_msRec [NUM_MSR]
MEASSET	g_sets [NUM_MS]
volatile CTRL_MODE	g_ctm
ENG_TIMER volatile	g_et
UINT	old_min = -IV_MEAS

Function Documentation

UCHAR CalcPrevIndex	(	UCHAR	curIdx,
		UCHAR	delIdx
	)

Definition at line 517 of file hc.c.

References CHAR, NUM_MS, and UCHAR.

void ControlEngine

(

ENG_MODE

em

)

takes care of the heating curve recording in eeprom
records only if outer temp value does not exist (specific hysteresis respected)

Parameters

recCnt	record counter for list indexing
set	current valid measurement set takes care of the mixer engine controlling (output pin switching)
em	current engine mode
mxp	mixer engine's step position

Definition at line 432 of file hc.c.

References EM_CCW, EM_CW, EM_STOP, ENG_RUN_CCW, ENG_RUN_CW, ENG_STOP_CCW, and ENG_STOP_CW.

Referenced by DoControl(), and DoEngineTest().

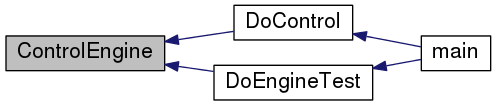

Here is the caller graph for this function:

MEASSET* DoControl	(	INT	inTemp,
		INT	outTemp,
		UINT	forTemp,
		UCHAR	learning,
		UINT	min,
		UCHAR	sec
	)

realizes the main heater controlling algorithm
the value of inner temperature distinguishes between the controlling strategy:
leading the inner temperature if not equal to INVALID_VAL_I16, leading the forerun otherwise

Parameters

inTemp	inner temperature
outTemp	outer temperature
forTemp	temperature of forerun
learning	specifies whether in learning mode -> TRUE, or forerun controlling required -> FALSE
min	minute value
sec	second value

Returns

meas set on next valid interval, NULL otherwise

Definition at line 279 of file hc.c.

References ENG_TIMER::allow, CM_DENY, CM_FOR, CM_MEAS, CM_REC, CM_SHDN, ENG_TIMER::cnt, ControlEngine(), DEL_FOR_TEMP, ENG_TIMER::em, EM_CCW, EM_CW, EM_STOP, FindForeRun(), MEASSET::forTemp, g_ctm, INT, MEASSET::inTemp, INVALID_VAL_U16, MAX_DEL_OUTER_TEMP, MAX_FOR_TEMP, MIN_FOR_TEMP, NUM_HR, old_min, MEASSET::outTemp, TRUE, UCHAR, and UINT.

Referenced by main().

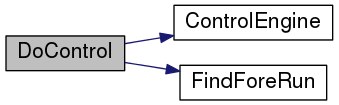

Here is the call graph for this function:

Here is the caller graph for this function:

void DoEngineTest

(

BTN_CODE

bc

)

do engine testing dependent on button request, simply drives the mixer engine unconditionally

Parameters

bc	button code of request

Definition at line 495 of file hc.c.

References BC_DN, BC_DNUP, BC_NONE, BC_UP, ControlEngine(), EM_CCW, EM_CW, and EM_STOP.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

UINT FindForeRun	(	INT *	outTemp,
		const UCHAR	range,
		UINT const	delLim
	)

gets the forerun temperature of the closest outer temperature which was recorded in learning phase
a predefined hysteresis supports a proper hit

Parameters

outTemp	outer temperature as a parameter to find a proper close forerun temperature, will be updated on a hit by the value from eep
range	delimits the number of entries in eeprom being searched - depends on the number of recorded entries (the recording state)
delLim	the delta limit against which to check the calculated difference of the outer temperature

Returns

a valid forerun temperature if there was a hit, INVALID_VAL_U16 otherwise

Definition at line 387 of file hc.c.

References HCREC::forTemp, ge_hcRec, INT, INVALID_VAL_U16, HCREC::outTemp, and UCHAR.

Referenced by DoControl().

Here is the caller graph for this function:

int main

(

void

)

main controlling task

Returns

will never return in normal operation

nominal temperature from setup

inner temp for controlling

outer temp for controlling

supply voltege of temperature sender

forerun temp for controlling

trace whether the context runs in the very first controlling cycle

offset value of button action for payload changes

counter for indexing the heating curve recording sets in e_hcRec of eeprom

indexer for measurement sets in ram, its value is an indicator of the time stamp when a set was captured - depending on the measurement interval

operation mode during controlling

button code for capturing

remember the previous seconds value

remember a time span of 5 seconds for meas value visualization

delta seconds

common time stamp for capturing

running tenth of a second

running seconds

running minutes

temporary measurement set in ram

previous control mode, indicator to write again

name of control mode in hrf

Definition at line 52 of file hc.c.

References ADC_TMP_INNER_ID, ADC_TMP_OUTER_ID, BC_DNUP, BC_NONE, CalcAdcTemp(), CalcSupplyVoltage(), CHAR, CM_DENY, DecodeButton(), DIR_UP, DoControl(), DoEngineTest(), DoSetup(), DT_INT, DT_TIME, DT_UCHAR, DT_UINT, FALSE, MEASSET::forTemp, g_ctm, g_min, g_sec, ge_hcrCnt, ge_msRec, GetCtrlMode(), GetSenderValues(), gMov(), Init(), INVALID_VAL_I16, INVALID_VAL_U16, NM_CNT, NM_OPMODE, NM_TFOR, NM_TIME, NM_TIN, NM_TOUT, NM_VOLT, NUM_HR, NUM_MS, NUM_MSR, old_min, OM_CONTI, OM_ENGTEST, OM_SENDER, OM_SETUP, OM_SHMEAS, OM_TMPCTRL, OP_MODES, OVM_MSR, PrintMeasValues(), PrintValue(), SetLimitValue(), sMov(), TRUE, UCHAR, UINT, and WriteCtrlMode().

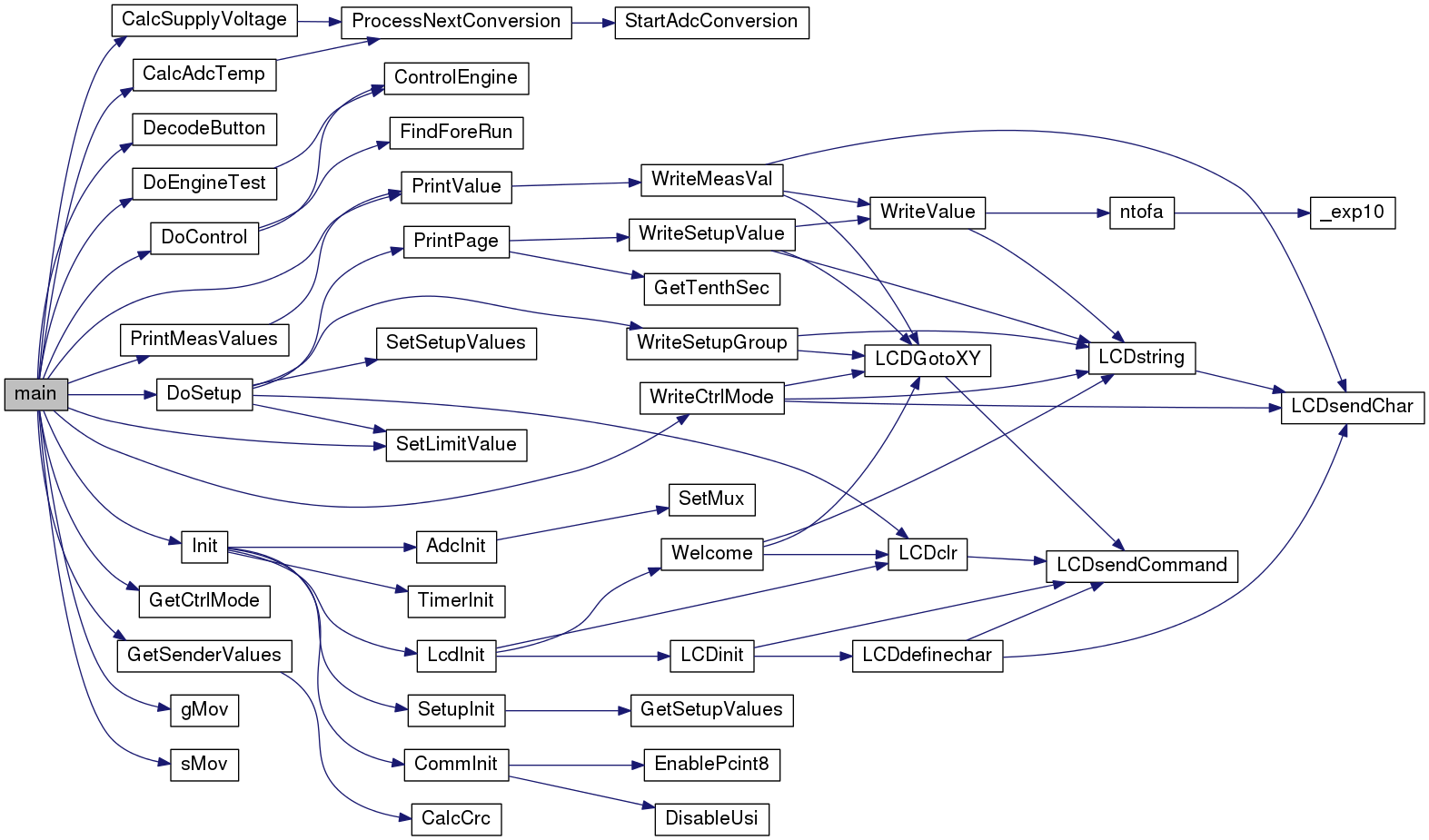

Here is the call graph for this function:

void PrintMeasValues	(	MEASSET *	ms,
		OP_MODE	opm,
		UCHAR	msrFull
	)

puts the measurement values on screen

Parameters

ms	current measurement set
opm	current operation mode

Definition at line 455 of file hc.c.

References DT_INT, DT_UINT, MEASSET::forTemp, MEASSET::inTemp, NM_MSRFULL, NM_TFOR, NM_TIN, NM_TOUT, OM_SETUP, OM_SHMEAS, MEASSET::outTemp, and PrintValue().

Referenced by main().

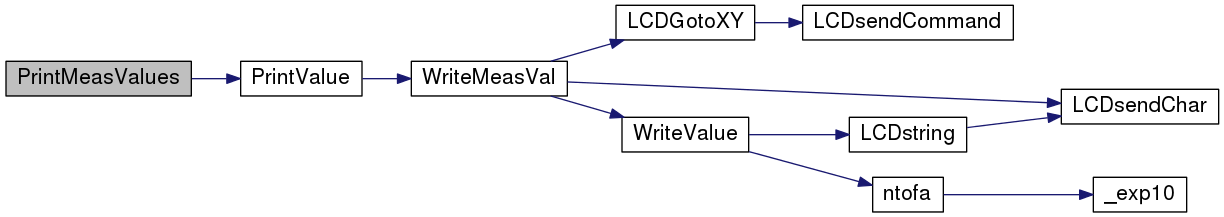

Here is the call graph for this function:

Here is the caller graph for this function:

void PrintValue	(	DATTYPE	dt,
		UCHAR	col,
		UCHAR	row,
		UCHAR	name,
		void *	value
	)

put a specific value on screen

Parameters

dt	value's data type
col	starting column of the output
row	starting row of the output
name	of value
value	to put on screen

Definition at line 480 of file hc.c.

References LCD_POS::col, MEASVAL::dt, MEASVAL::name, MEASVAL::pos, LCD_POS::row, MEASVAL::value, and WriteMeasVal().

Referenced by main(), and PrintMeasValues().

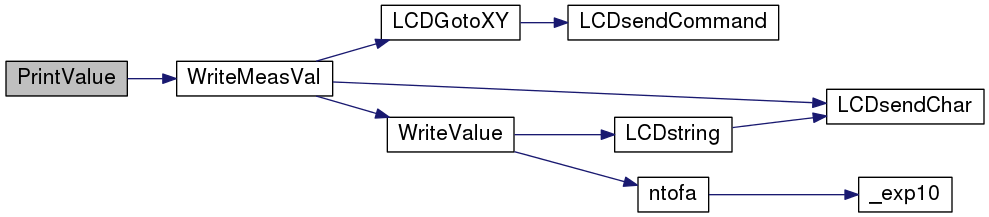

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

UCHAR EEMEM e_dummy[3] = ".."

dummy to consume some bytes of eeprom, without this the compiler seems to confuse the very last data in eeprom

Definition at line 27 of file hc.c.

volatile CTRL_MODE g_ctm

control mode tracing

control mode

Definition at line 27 of file timer.c.

Referenced by DoControl(), ISR(), and main().

ENG_TIMER volatile g_et

mixer engine control structure

Definition at line 31 of file timer.c.

MEASSET g_sets[NUM_MS]

list of measurement sets in ram

Definition at line 35 of file hc.c.

Referenced by Init().

UCHAR EEMEM ge_hcrCnt = 0

counter for indexing of heating curve recording structures in eeprom

Definition at line 23 of file hc.c.

Referenced by main().

HCREC EEMEM ge_hcRec[NUM_HR]

nominal temperature in eeprom heating curve recording structures in eeprom

Definition at line 19 of file hc.c.

Referenced by FindForeRun().

MEASSET EEMEM ge_msRec[NUM_MSR]

recording current temperature values to get a clue

recording current temperature values to get a clue 5 hrs interval * 12 sets = 60 hrs period

Definition at line 20 of file setup.c.

Referenced by main().

UINT old_min = -IV_MEAS

Definition at line 46 of file hc.c.

Referenced by DoControl(), and main().
