setup.c File Reference

#include "types.h"
#include "setup.h"
#include "hc.h"
#include "lcdisp.h"
#include "lcd_lib.h"
#include "timer.h"
#include "comm.h"

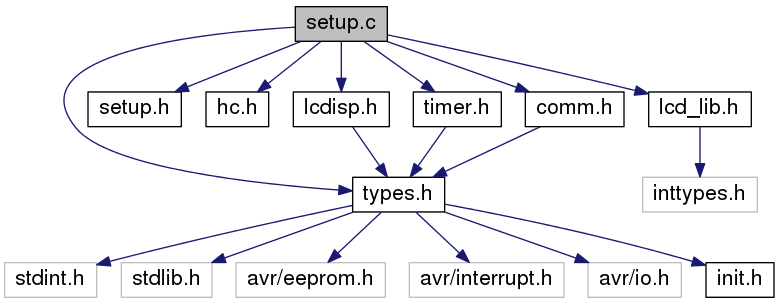

Include dependency graph for setup.c:

Go to the source code of this file.

Functions
void	SetupInit (void)
	setup initialization at startup More...
UINT *	GetSetupValues (UCHAR fromEep)
	get payload values from specified memory location More...
void	SetSetupValues (UINT *sv)
	update payload values in from ram to eeprom More...
void	DoSetup (BTN_CODE bc, OP_MODE *opm)
	does the setup job, distinguishes data selection and modification dependent on user pressed buttons and current operation mode More...
void	PrintPage (UCHAR id)
	takes care of visualization on screen, flashes the selected setup value, identifies selected item and its assigned page number More...
void	TestButton (BTN_CODE bc)
	testing diferent button codes by screen visualization (inactive) More...

Variables
MEASSET EEMEM	ge_msRec [NUM_MSR]
SETUP_ITEM EEMEM	ge_setups [NUM_SETUPS]
UINT	g_setVals [NUM_SETUPS]

Function Documentation

void DoSetup	(	BTN_CODE	bc,
		OP_MODE *	opm
	)

does the setup job, distinguishes data selection and modification dependent on user pressed buttons and current operation mode

Parameters

bc	button code
opm	operation mode

Definition at line 86 of file setup.c.

References BC_DN, BC_DNUP, BC_DNUP_L, BC_UP, DIR_DOWN, DIR_UP, DT_UCHAR, g_setVals, ge_setups, SETUP_ITEM::group, LCDclr(), SETUP_ITEM::max, SETUP_ITEM::min, NUM_SETUPS, OM_SETUP, OM_TMPCTRL, OP_MODES, PrintPage(), SetLimitValue(), SetSetupValues(), SETUP_ITEM::type, UCHAR, and WriteSetupGroup().

Referenced by main().

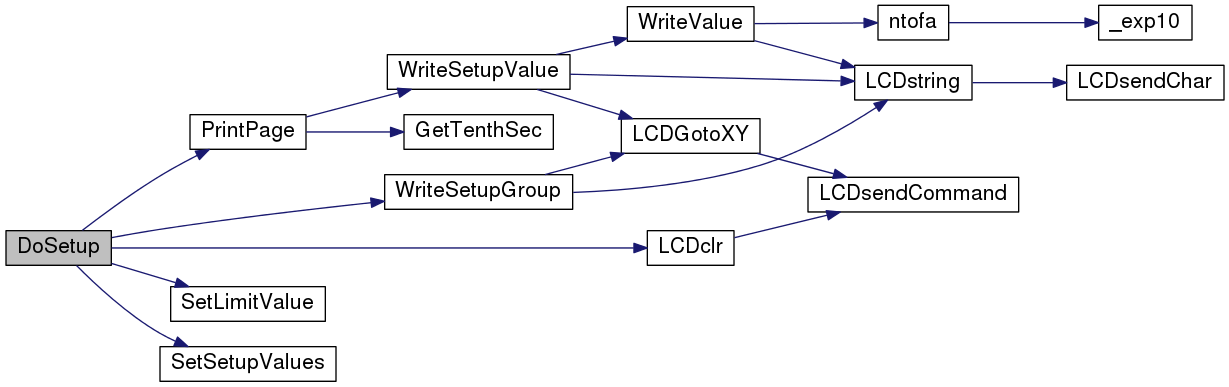

Here is the call graph for this function:

Here is the caller graph for this function:

UINT* GetSetupValues

(

UCHAR

fromEep

)

get payload values from specified memory location

Parameters

fromEep

true -> values are being read from eeprom, from RAM otherwise

Returns

payload only values

Definition at line 59 of file setup.c.

References g_setVals, ge_setups, NUM_SETUPS, UCHAR, and SETUP_ITEM::value.

Referenced by SetupInit().

Here is the caller graph for this function:

void PrintPage

(

UCHAR

id

)

takes care of visualization on screen, flashes the selected setup value, identifies selected item and its assigned page number

Parameters

id	index of the current item in eeprom and payload value in ram

Definition at line 124 of file setup.c.

References g_setVals, ge_setups, GetTenthSec(), NUM_SETUPS, SZ_SETUP_ITEM, TRUE, UCHAR, SETUP_ITEM::value, and WriteSetupValue().

Referenced by DoSetup().

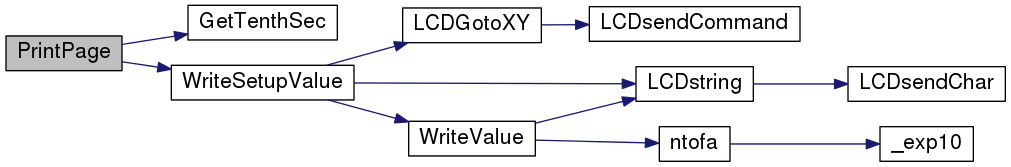

Here is the call graph for this function:

Here is the caller graph for this function:

void SetSetupValues

(

UINT *

sv

)

update payload values in from ram to eeprom

Parameters

sv	list of payload values

Definition at line 73 of file setup.c.

References ge_setups, NUM_SETUPS, UCHAR, and SETUP_ITEM::value.

Referenced by DoSetup().

Here is the caller graph for this function:

void SetupInit

(

void

)

setup initialization at startup

Definition at line 50 of file setup.c.

References GetSetupValues(), and TRUE.

Referenced by Init().

Here is the call graph for this function:

Here is the caller graph for this function:

void TestButton

(

BTN_CODE

bc

)

testing diferent button codes by screen visualization (inactive)

Parameters

bc	button code

Definition at line 155 of file setup.c.

References BC_DN, BC_DNUP, BC_DNUP_L, BC_UP, LCDGotoXY(), LCDstring(), and UCHAR.

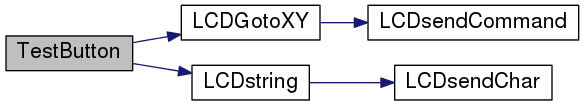

Here is the call graph for this function:

Variable Documentation

UINT g_setVals[NUM_SETUPS]

effective (payload) data of each setup item in RAM

global setup values (payload only) for modification at runtime

Definition at line 103 of file setup.h.

Referenced by DoSetup(), GetSetupValues(), and PrintPage().

MEASSET EEMEM ge_msRec[NUM_MSR]

recording current temperature values to get a clue 5 hrs interval * 12 sets = 60 hrs period

Definition at line 20 of file setup.c.

Referenced by main().

SETUP_ITEM EEMEM ge_setups[NUM_SETUPS]

Initial value:

= {
    {"NIT", MIN_ABS_INNER_TEMP, MAX_ABS_INNER_TEMP,        NOM_IN_TMP,  DT_UINT, SG_MEAS},
    {"OIT",             -32600,              32600,       OFF_IN_TEMP,   DT_INT, SG_MEAS},
    {"ARV",               4500,               5500,   ADC_REF_VOLTAGE,  DT_UINT, SG_MEAS},
    {"RCV",                 10,                150, REV_CURRENT_VALUE, DT_UCHAR, SG_MEAS},
    {"RRF",               5000,              65400,             RR_IN,  DT_UINT, SG_MEAS},
    {"SMI",                  1,                 59,           IV_SHOW, DT_UCHAR, SG_MEAS},
    {"SDT",               5000,              32600,   OUT_TMP_SHDN_TH,   DT_INT, SG_CTRL},
    {"SDD",                  1,                 10,         SHTDN_DUR, DT_UCHAR, SG_CTRL},
    {"ECD",                  1,                255,      ENG_CTRL_DUR, DT_UCHAR, SG_CTRL},


    {"HCI",                  1,                255,          IV_HCREC, DT_UCHAR, SG_CTRL},
    {"IVM",                1,                255,           IV_MEAS, DT_UCHAR, SG_CTRL},
    {"DET",                0,              10500,        DELTA_TEMP,  DT_UINT, SG_CTRL},
    {"TAR",                 10,                255,               120, DT_UCHAR, SG_CTRL}
}

statically allocated list of setup items in eeprom

Definition at line 24 of file setup.c.

Referenced by DoSetup(), GetSetupValues(), PrintPage(), and SetSetupValues().
